Discover the highlights
- Front fork suspension for a smooth and comfortable ride
- Available in three different frame sizes: 19" and 21"
- Ananda mid-engine for perfect support
- Shimano Deore 10-speed derailleur
- Two battery options for a maximum range of 175 km
- Hydraulic Shimano MT400 disc brakes for instant stopping power
- Integrated KD-586 color display for access to all relevant settings and information.

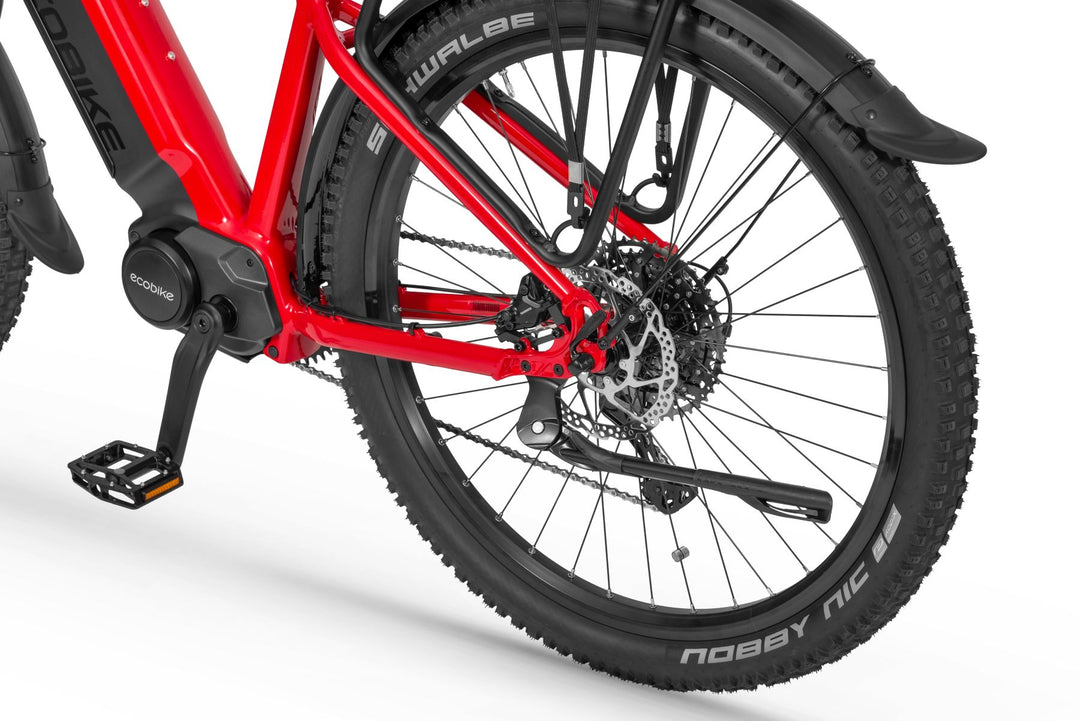

Motor and battery
Battery : This e-bike is available with two battery types: a 720 Wh battery and a 960 Wh battery. The 720 Wh battery provides a comfortable range of up to 175 km. The 960 Wh battery option allows you to further increase your range.

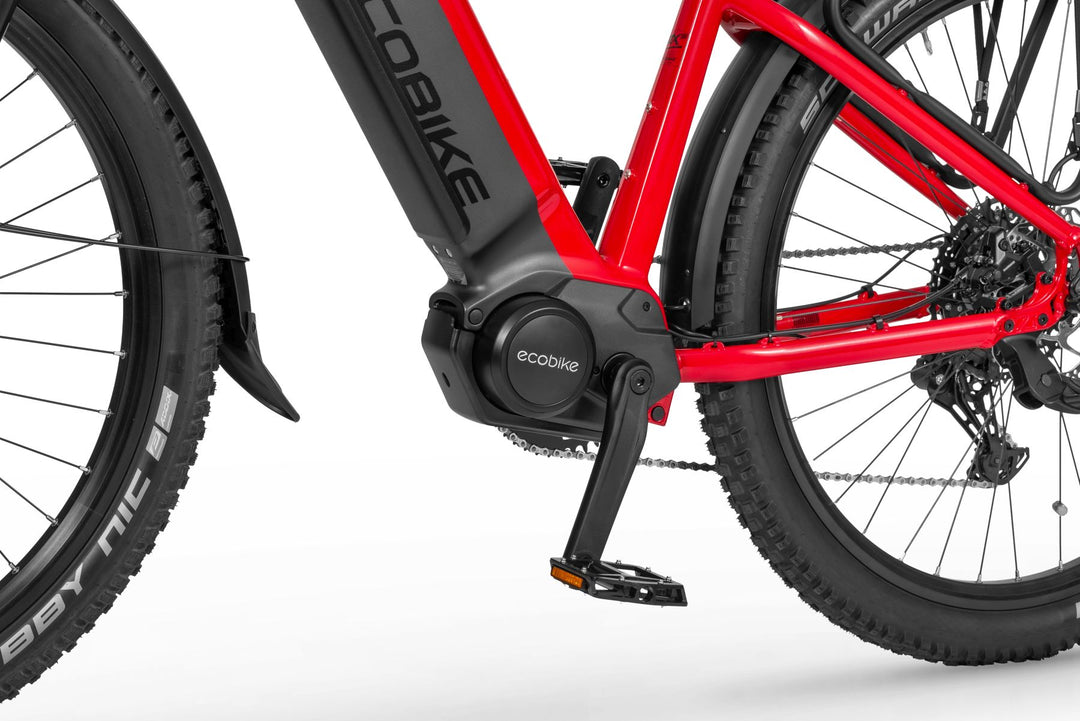

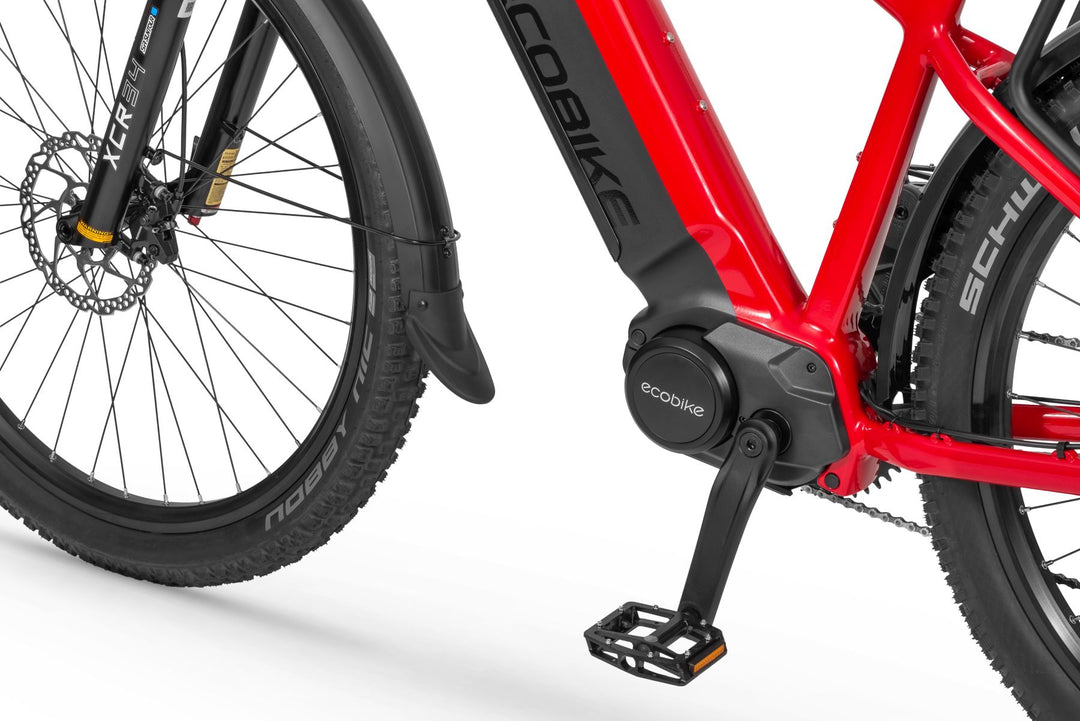

Motor : The Ananda mid-drive motor, with a nominal power of 250 W and a maximum power of 780 W, feels very natural, as the motor applies power directly to the pedals. The mid-drive motor adapts to the force applied to the pedals.

Brakes
With the Shimano MT400 hydraulic brakes, you get the best possible braking. You can ride this bike safely and worry-free because you can brake directly with these quality Shimano brakes.

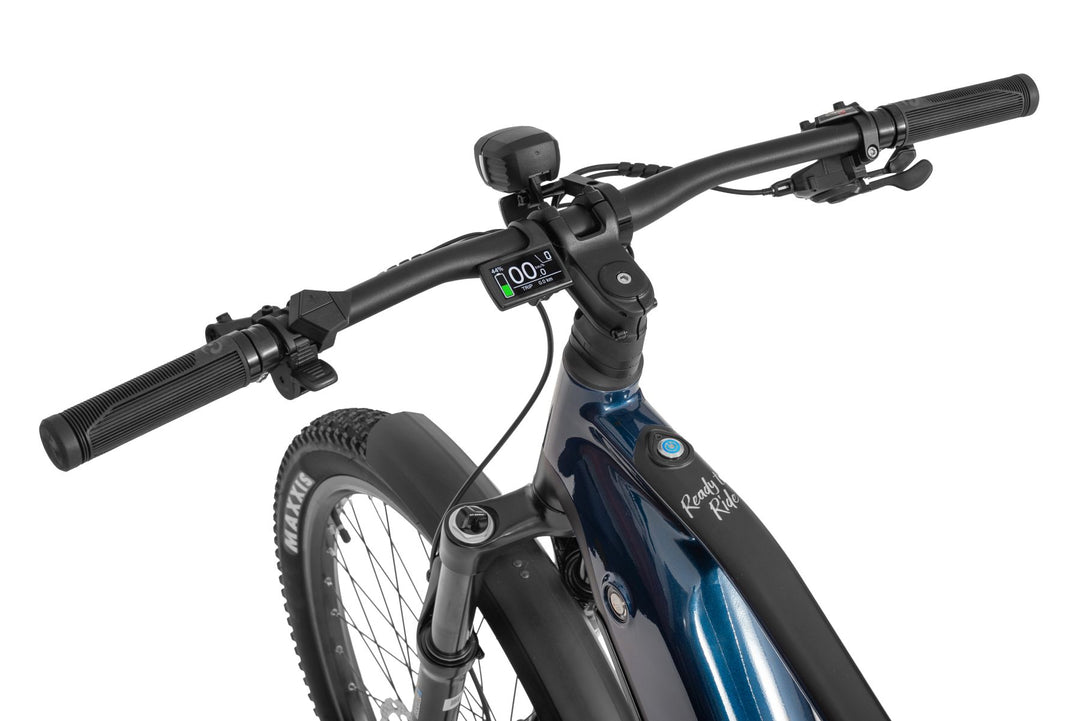

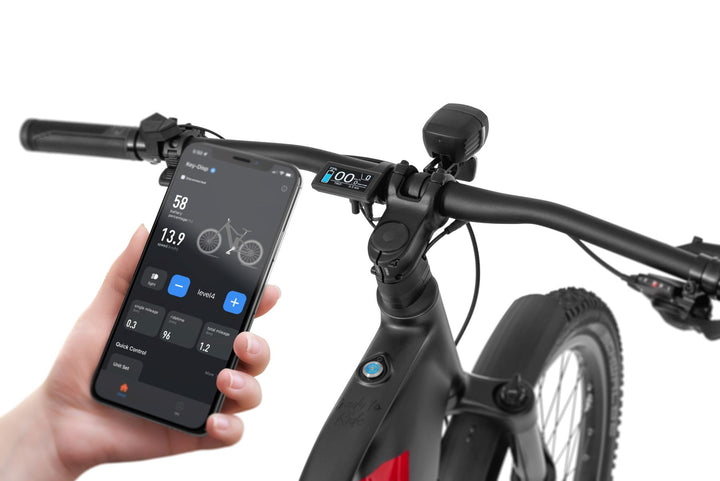

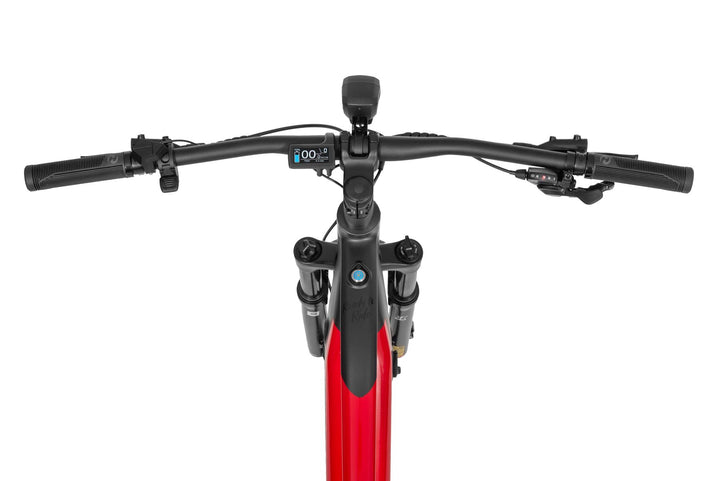

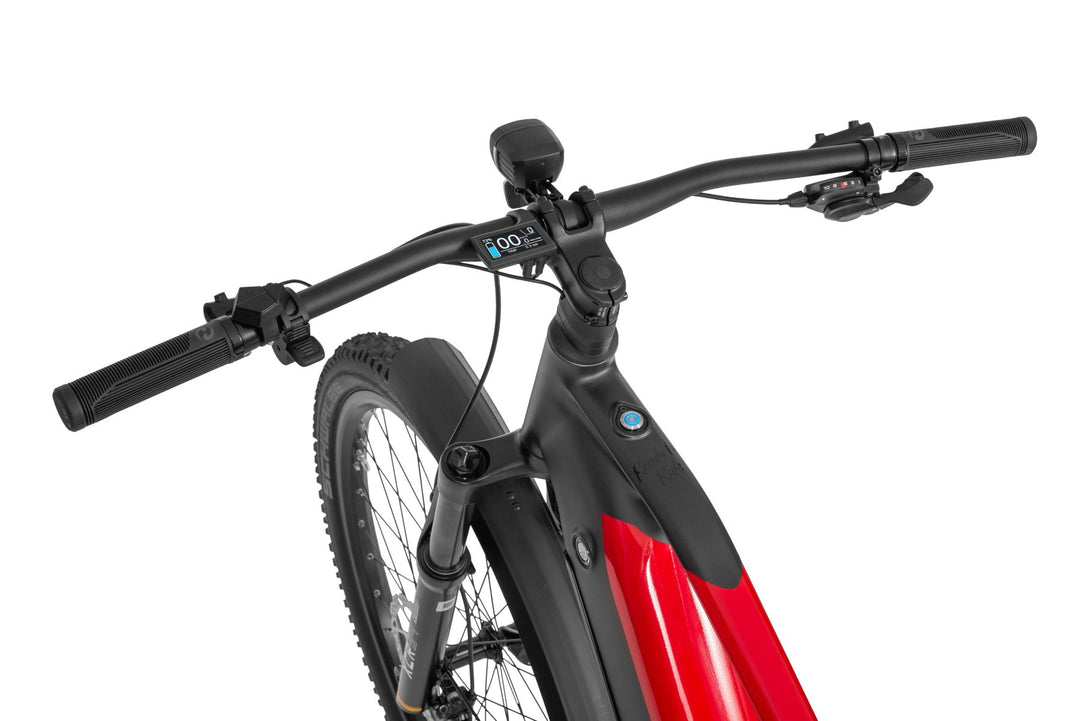

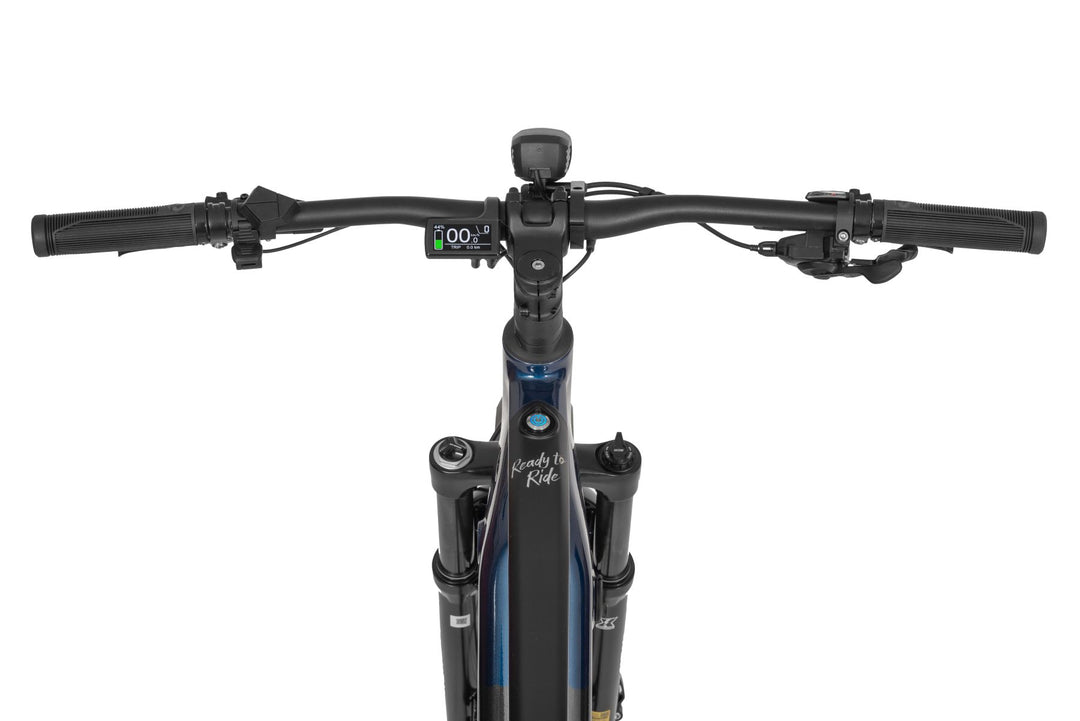

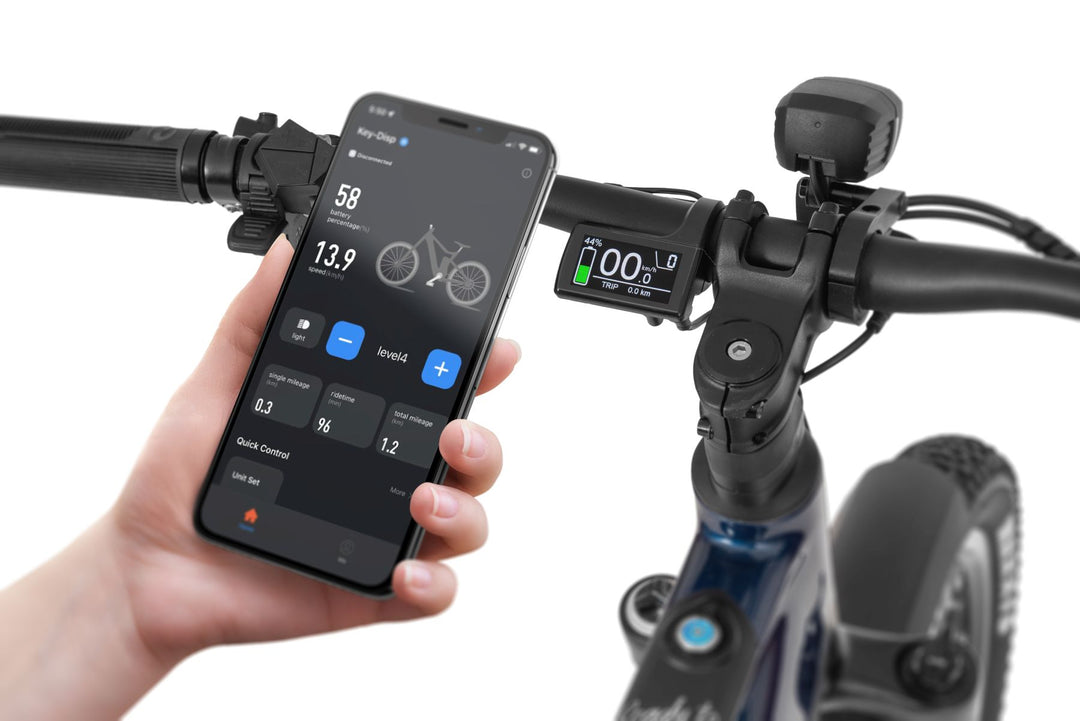

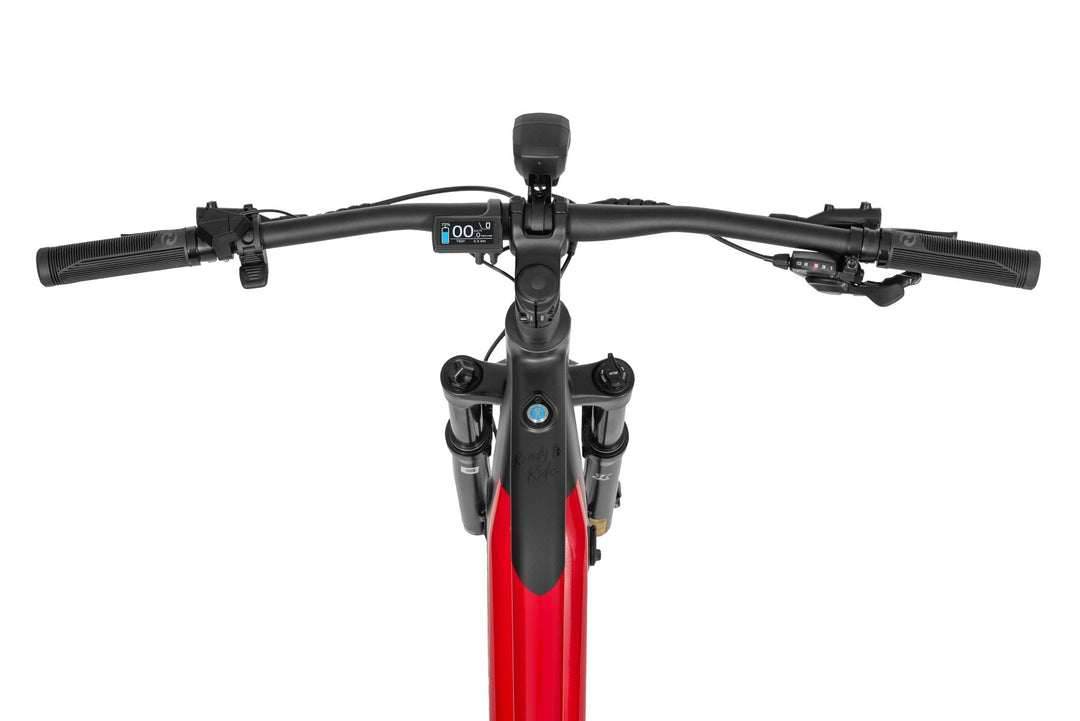

Display
The system's operation is supported by a control panel with a color display. It's equipped with a twilight sensor that automatically adjusts the screen brightness to the ambient conditions you're in. Its user-friendly interface offers intuitive navigation between various functions and settings.

Tires
The 29" x 2.6 MAXXIS Rekon tires on reinforced triple hollow-wall rims with Sapim spokes offer you sufficient stability and speed for your long tours.

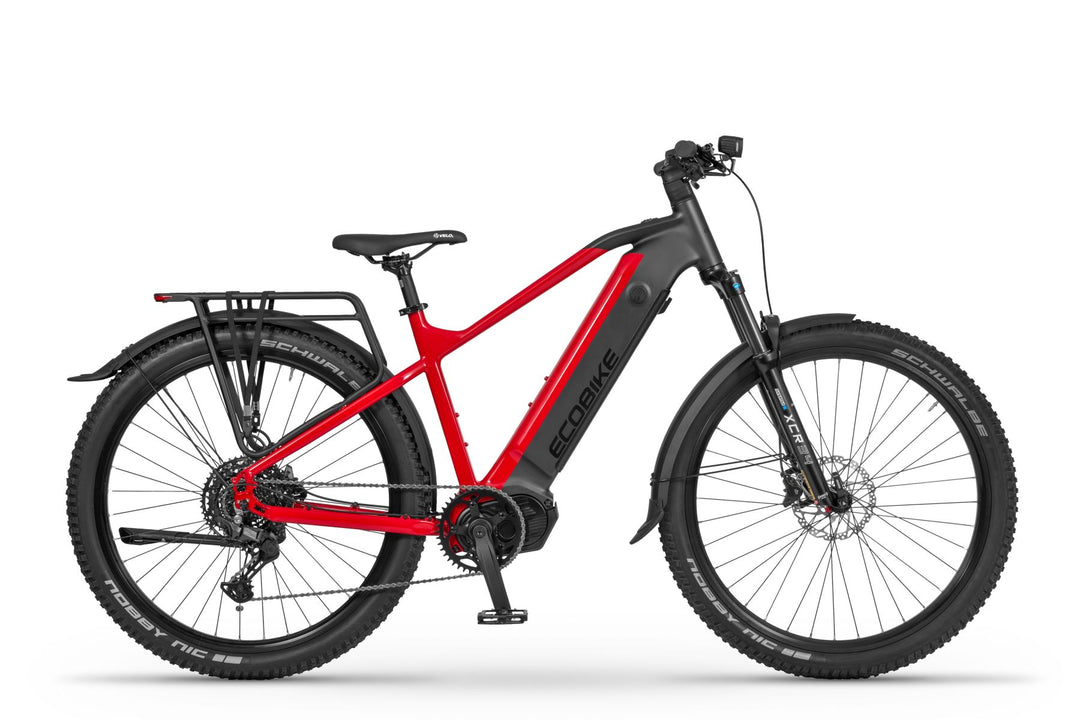

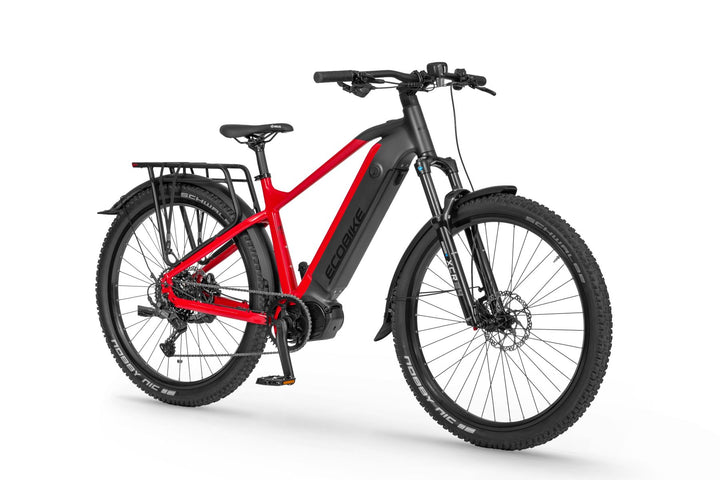

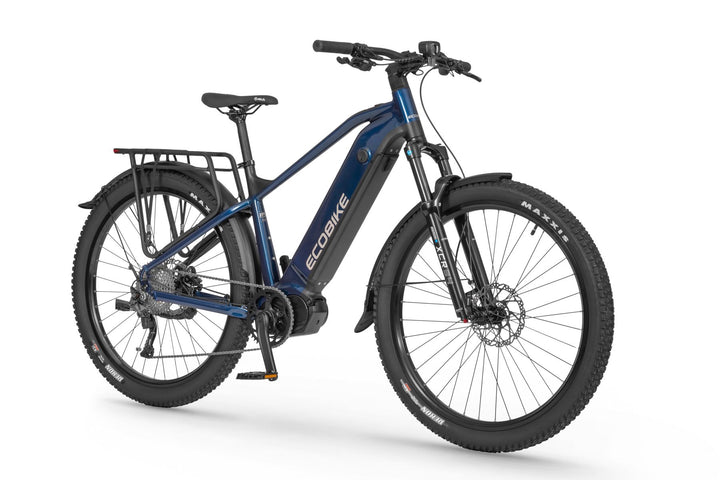

Product Specification Ecobike RX500 SUV
Battery
Component | Specification |
---|---|
Battery | 720 Wh (15 Ah) or 960 Wh (20 Ah) LG cells |
Charger | 100–240V / 54.6V 3A |
Battery voltage | 48 V |
Range | up to 175 km |
E-Bike System
Component | Specification |
---|---|
Motor brand | Ananda |
Motor model | M100 – ISIS (CAN protocol) |
Motor type | Mid-drive motor |
Motor voltage | 48 V |
Torque | 130 N·m |
Motor power | 250 W (max. 780 W) |
Motor controller | CAN protocol integrated |
Speed | 25 km/h according to EU standard EN 15194 |
Display
Component | Specification |
---|---|
Display model | KD-586 |
Display type | Color LCD with twilight sensor |
Bicycle
Component | Specification |
---|---|
Frame | 17" / 19" / 21" hydroformed aluminum SUV frame |
Fork | SR Suntour XCR34 Boost Air, 120 mm travel |
Wheels | 29" Boost aluminum, reinforced Sapim spokes |
Tires | 29" x 2.6" Schwalbe Nobby Nic or Maxxis Rekon |
Front hub | Shimano TX505 |
Rear hub | Shimano TX505 |
Handlebar | Zoom SP-C255, 31.9 mm x 350 mm, 20 mm rise |
Stem | Promax TDS-D631-8, 31.8 mm / 60 mm |
Grips | Herrmans RIB single lock |
Brakes | Shimano MT401 hydraulic disc brakes |
Gear system | Shimano Deore 10-speed |
Shifter | Shimano Deore |
Cassette | Shimano CS-M4100 11-42T |
Chain | KMC e10 Turbo Silver |
Crank | Ananda 44T |
Pedals | Velo MTB platform pedals |
Saddle | Velo VL-3363 |
Seatpost | Zoom 27.2 mm / 350 mm aluminum |
Front light | Herrmans MR5 LED |
Rear light | Spanninga GLOW XE LED |
Max. payload | 125 kg |
Weight | approx. 27.7 kg (17") / 28.0 kg (19") / 28.3 kg (21") |
geometry

A. EFFECTIVE TOP TUBE LENGTH (mm)
600 (17") / 625 (19") / 645 (21")
B. HEAD TUBE LENGTH (mm)
145
C. SEAT TUBE LENGTH (MM)
432 (17") / 482 (19") / 533 (21")
D. WHEELBASE (MM)
1192.7 (17") / 1204.6 (19") / 1204.6 (21")
E. SEAT ANGLE (DEGREES)
73
F. HEAD TUBE ANGLE (DEGREES)
67


Every Ecobike product meets the strict European Union standards for electric bicycles: EN15194 / EPAC / ISO4210-2
